Editorial Reviews:
Product Description
Quality is always first at Clover Electronics. At Clover Electronics, everyone is a part of a team, where "Together Everyone Achieves More" and service is never compromised.PRODUCT FEATURES:Color Ultra Miniature Camera with standard lens;Panasonic 1/3" HR CCD sensor;Low illumination;High image quality;Compact and lightness camera;High resolution;Built-in electronics auto iris;Built-in backlight compensation.
Amazon.com Product Review

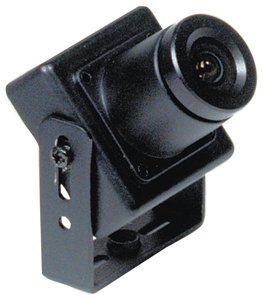

The Clover CCM630 Color Ultra Miniature Camera with Standard Lens is the fast, simple and extremely discreet CCTV video surveillance solution you've been looking for. Protected by a compact and light-weight housing, this camera provides high-quality images and allows users to remotely monitor warehouses, construction sites, parking lots, office buildings and more. Easy to install, the CCM630 is designed for primarily indoor use, but can be used in well-protected outdoor environments. This camera utilizes a high-end 0.33-inch Panasonic CCD (charge-coupled device) sensor, with a resolution of 512-by-492 pixels or 420 TVL (TV lines). The CCM630 includes a 3.6mm lens, has a usable illumination down to 0.5 Lux, and a better-than 46 dB S/N (signal to noise) ratio. The unit's built-in electronic auto iris control, built-in automatic backlight compensation, low-illumination function, and exposure times ranging from 1/60 to 1/100,000 of a second, ensuring a high picture quality with user-definable parameters. This camera can provide a frame rate of up to 30 frames-per-second (frames per second), equivalent to a 460-NTSC analog video. It can operate in temperatures from -10 to 50-degrees Celsius. Technical Features: - Sensitivity: down to 0.5 Lux
- S/N ratio: more than 46 dB
- Frame rate: up to 30 frames per second
- Resolution: up to 512 by 492 pixels or 420 TVL
- Operating temperature: -10 to 50 degrees Celsius
- Dimensions: approximately 3.2 x 2.8 x 3.2 centimeters (W x D x H)
Overall, the Clover CCM630 provides you with a reliable, easy-to-use and unobtrusive camera that can complement most any monitoring system. Quick and easy to install, this incredibly compact camera comes completely assembled and ready to use, and includes an adjustable set of functions to help you get the surveillance you need regardless of the lighting environment. Users should note, however, that the CCD sensor may become permanently damaged if exposed to long hours of direct sunlight or halogen light. About Surveillance Camera Technical Features
Lux rating is the measurement used to indicate how sensitive a camera is to light, and stands for the level of light reflected off a piece of paper by a candle from one meter away. Thus a sensitivity of three Lux would mean a camera could generate an acceptable picture of a piece-of-paper-sized object that was illuminated by the equivalent of three candles from one meter away. The lower the Lux level, the better the camera's ability to work in low-light conditions. The camera's resolution should be greater than or equal to the resolution supported by the system's recorder or monitor. The S/N, or signal to noise ratio, is an important measure of a camera's quality. A poor camera, low-light conditions or poor wiring causes "noise" which consumes processing power and disk space. A camera with a wide dynamic range is ideal, especially for recording areas in which both indoor and outdoor light are present. CCD (charge-coupled device) sensors provide high-quality images that are less susceptible to noise. CMOS (complimentary metal-oxide semiconductor) sensors offer less image quality, but are usually more cost-effective and energy efficient.
|
