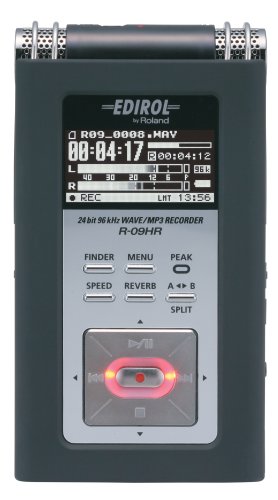

Edirol R-09HR High-Resolution WAVE/MP3 Recorder |
| Brand: Edirol
List Price: $450.00
Buy New: $322.00
You Save: $128.00 (28%)
New (14)
Rating:  7 reviews
Sales Rank: 28
Color: black
Media: Electronics
Shipping Weight (lbs): 3
Dimensions (in): 9 x 6.4 x 3.3
The R-09HR is a professional, high-definition recorder that travels light and performs like a heavyweight. With crystal-clear 24/96 fidelity, the R-09HR is the new flagship of EDIROL's award-winning R-series recorders. Small enough to fit in a shirt pocket, the R-09HR has a new tactile feel that is easy to grip. It also has a user-friendly graphic display for ultra easy operation. The large 1.5 inchy OLED (Organic Light-Emitting Diode) display provides wide view-ability, at-a-glance level meters
Warranty: 90 day parts and labor, 1 year parts
MPN: R-09HR
Model: R-09HR
UPC: 761294405635
EAN: 0761294405635
ASIN: B0016MLUKU
Release Date: May 1, 2008
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | 24-bit/96kHz linear PCM high-resolution, low-noise recording | | • | High-grade, high-sensitivity stereo condenser microphone built i | | • | Records to SD or SDHC memory card (Up to 8 GB) | | • | Preview speaker built in | | • | Wireless remote controller included |
|
| Similar Items:
|
| Editorial Reviews:
Product Description
The R-09HR is a professional, high-definition recorder that travels light and performs like a heavyweight. With crystal-clear 24/96 fidelity, the R-09HR is the new flagship of EDIROLs award-winning R-series recorders. Includes: Owner s Manual, AC Adaptor, Remote control, Stand, SD Memory Card (512 M bytes), USB cable (Mini-B type), CD-ROM (Pyro Audio Creator LE)
From the Manufacturer
The R-09HR is a professional, high-definition recorder that travels light and performs like a heavyweight. With crystal-clear 24/96 fidelity, the R-09HR is the new flagship of EDIROL's award-winning R-series recorders. 24bit/96kHz linear PCM + I.A.R.C. (Isolated Adaptive Recording Circuit)
Experience precise audio reproduction, and clarity with a wider dynamic range when using the higher bit and sample rates that the R-09HR offers. The R-09HR supports up to 24bit/96kHz linear PCM recording, which has over twice the digital audio resolution of a standard audio CD. I.A.R.C. is a newly developed, dedicated analog circuit optimized for recording with the R-09HR's onboard A/D converter. Electrolytic capacitors provide stable, reliable power with an independent power source for the analog circuitry, and another power source for the digital circuit board, thus eliminating DC interference between components in the R-09HR. The I.A.R.C. also contributes to high quality, low noise MP3 recording with the R-09HR. Professional-grade, high-sensitivity stereo condenser microphone built-in
When recording with the R-09HR, there's no extra gear to buy or cables to connect. A professional quality stereo microphone is built right into the unit, complete with a dedicated analog input control, mono/stereo selector, low-cut filter, limiter/AGC (Auto Gain Control), and a gain boost. The onboard electret condenser microphone elements are very compact, ultra-sensitive, and placed to capture three-dimensional sound naturally and accurately. To further avoid possible noise interference from internal components, the microphone housing is separated from the main circuit board…another sign of quality design from EDIROL (For use an external microphone, the R-09HR offers a 1/8" stereo mic input). Compact, hand-held body allows for convenient portable use
Small enough to fit in a shirt pocket, the R-09HR has a new tactile feel that is easy to grip. It also has a user-friendly graphic display for ultra easy operation. The large 1.5" OLED (Organic Light-Emitting Diode) display provides wide view-ability, at-a-glance level meters, peak indicators, and additional recording information on the screen. Preview Monitor (Small Speaker) built in
Without headphones, you can easily check out the recorded sounds right after the recording, thanks to the preview monitor on rear panel. Wireless remote controller included
With the included wireless remote controller, transport functions such as recording start/playback start, fast forward, rewind, volume control, and input level control can be accessed from a distance away. This allows the R-09HR to be placed in exactly the right position for recording, and allows for quick and easy touch-less operation. High-speed file transfer via USB 2.0 connection to computer
The R-09 can connect to the outside world via USB for importing/exporting audio files to a computer very quickly. The R-09HR supports Hi-Speed USB (USB 2.0) mass storage so file transfers are very quick and convenient. The R-09HR comes with Cakewalk's "pyro Audio Creator LE" CD-ROM. This software is perfect for WAV/MP3 audio file editing; to trim cut, or fade audio sections, to burn audio collections to CD, publish a web page with sounds, to publish a blog with audio, to podcast an interview or performance, and so on. With "pyro" the R-09HR package becomes truly a complete recording solution suite from recording to CD-burning. Wide variety of optional accessories
Perfect for many recording applications from rehearsals, recitals, concerts, interviews, podcasts, research, photo journaling, law enforcement, to nature and field recording, and business meetings, the R-09HR optional accessories are useful to pros and novices alike. *Cakewalk "pyro Audio Creator LE" is compatible with Windows Vista and Windows XP. - 24-bit/96kHz linear PCM high-resolution, low-noise recording
- Newly developed Isolated Adaptive Recording Circuit (I.A.R.C.)
- High-grade, high-sensitivity stereo condenser microphone built in
- Records to SD or SDHC memory card (Up to 8 GB)
- Compact, hand-held body for convenient portable use
- Wide view-ability on large OLED (Organic Light-Emitting Diode) display
- Preview speaker built in
- Wireless remote controller included
- High-speed file transfer via USB 2.0 connection to computer
- Cakewalk "pyro Audio Creator LE" wave-editing software included
Specifications - Tracks: 2 (stereo)
- Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
- Data Type:
Recording (stereo only) - WAVE: 44.1/48/88.2/96 kHz, 16/24 bits
- MP3 (MPEG-1 Audio Layer 3): 44.1/48 kHz, 64/96/128/160/192/224/320 kbps
Playback - WAVE: 32/44.1/48/88.2/96 kHz, 16/24 bits
- MP3 (MPEG-1 Audio Layer 3): 32/44.1/48 kHz, 32 to 320 kbps or VBR (Variable Bit Rate)
- Memory Card: SD Memory Card (SDHC format compatible)
- Recording Time*:
- WAV (24-bit/96 kHz): 27 mins/GB
- WAV (24-bit/88.2 kHz): 30 mins/GB
- WAV (24-bit/48 kHz): 54 mins/GB
- WAV (24-bit/44.1 kHz): 59 mins/GB
- WAV (16-bit/96 kHz): 40 mins/GB
- WAV (16-bit/88.2 kHz): 44 mins/GB
- WAV (16-bit/48 kHz): 81 mins/GB
- WAV (16-bit/44.1 kHz): 88 mins/GB
- MP3 (320 kbps): 392 mins/GB
- MP3 (128 kbps): 980 mins/GB
- Audio Inputs: Internal Stereo Microphone
Mic input (Stereo miniature phone type, plug-in powered mic)*
Line input (Stereo miniature phone type)
- Nominal Input Level: Variable
- Mic input: -33 dBu (Default input level)
- Line input: 2 dBu (Default input level)
- Input Impedance: Mic input: 30 k ohms
Line input: 15 k ohms - Output Level: 20 mW (In case 16 ohms load)
- Recommended Load Impedance: 16 ohms or greater
- Frequency Response: 20 Hz to 40 kHz
- USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)
- Effects: Playback only. Excludes playback in 88.2 kHz or 96 kHz.
Reverb: 4 types (Hall1, Hall2, Room, Plate)
Speed change: 50 to 150 % of playback speed - Current Draw: 370 mA
- Included Accessories: Owner's Manual, AC Adaptor, Remote control, Stand, SD Memory Card (512 M bytes), USB cable (Mini-B type), CD-ROM (Pyro Audio Creator LE)
- Size and Weight: Width: 62 mm (2-1/2 inches)
Depth: 113 mm (4-1/2 inches)
Height: 27 mm (1-1/16 inches)
Weight: 0.2 kg (0 lbs. 7 oz.) *0 dbu = 0.775 Vrms *Each recording time is approximate. The times may change depending on the card specifications. In case that there are plural files, the sum of recording time would be shorter than above.
*The internal/external mic cannot be used when the line input is used.
*The specifications are subject to change without notice.
|
| Customer Reviews: Read 2 more reviews...
Top quality field recorder May 27, 2008
Beagle (Sydney)
48 out of 48 found this review helpful
The Edirol R-09HR is an amazing device. It looks a bit like an electric shaver and fits in the palm of your hand. A friend of mine has the Zoom H4 which is much larger, has cheap plastic finishing and a clumsy user interface. Although the H4 may have a few extra features the Edirol R-09HR is much better made and designed and I think it is a better buy.
I read reviews about its predecessor the Edirol R-09 WAVE/MP3 Recorder and the main gripe seemed to be about the flimsy battery cover at the base. Well Edirol obviously reads the reviews since they have changed to a sliding battery cover on the back of the device. The device itself is covered with a sort of rubberised material and it feels solid and sturdy (I think the old version was smooth hard plastic). The flap at the bottom where the batteries were kept on the R-09 is now just used for the SD card and USB port. It is made of the same flexible rubber and doesn't look in any danger of breaking off.
From what I can gather from comparing with R-09 reviews, the following are the other new features on the R-09HR
- Higher resolution recording (that's what the HR stands for) with sampling rates up to 96kHz
- Support for SD/SDHC cards up to 32GB (It comes with a 512MB card and I bought an 8GB card for mine).
- A built in monitor speaker to play back the sound without needing to use headphones (not that useful because the sound quality is not great)
- A wireless remote control for hands free operation (this is handy)
- A speed control which allows you to vary the playback speed (without varying the pitch). This is great for transcribing.
I was impressed at the intuitive interface. It comes with a detailed instruction book as well as an owner's guide though you can master the controls in no time. Basically you just press the record button once, set the levels and then press it again to start recording. The owner's guide is helpful because it suggests what settings to use and where to position the device in various different recording situations (recording band, vocals, meetings, outside, individual instruments, etc). Once you are done recording you can just connect it to your PC and pull down the files. It also comes with Cakewalk Pyro Audio Creator software to help you edit your recordings and help you create CDs.
I bought this device to record my music practise (I play trumpet and guitar) and to record the rehearsals and performances of my jazz band. I am not an expert, but the recording quality sounds great to me.
The only problem I have is not with the device itself but the accessories - they seem a bit overpriced and the descriptions are a bit confusing (maybe even misleading). If you want to mount the device on a microphone stand (which is handy if you are recording an ensemble) you would think you would just need to buy the Edirol Microphone Stand Adapter, however read the fine print and you will see that you also need the Edirol Cover and Stand for the R-09HR (at the time of this review not currently available at Amazon).
Whatever you do, don't do what I did and order the Edirol Cover and Stand for the R-09 since it doesn't fit the R-09HR! The R-09 must have been slightly smaller.
Nevertheless, I think the device itself is very good value so I am happy to excuse the hassles I have had with the accessories.
Edirol/Roland R-09HR Field Recorder July 7, 2008
James J. Flannery (Littleton, Co United States)
7 out of 7 found this review helpful
After a year's use of the R-09, Roland released this updated version with simplified controls, more options, a nicer case (rubberized!) and the ability to choose between AGC and LIMITER. I had been very impressed with the original R-09, but find the "HR" to be a great improvement!
On the 4th of July I took it to a fireworks display to try out the difference between AGC and the LIMITER. I quickly found that the limiter worked much better than AGC for this application. There was no "AGC Pumping" while using the limiter, and no distortion. AGC would be better for recording meetings with people sitting at varying distances.
Excellent recorder; excellent service July 3, 2008
Faraz Rabbani (Mississauga, ON, Canada)
4 out of 4 found this review helpful
I used to own the Edirol R-09 (the model before this). Having read some reviews, I purchased the R-09HR, and was DELIGHTED. The recording quality is excellent; it is light and super-convenient; and the look-and-feel are functional and elegant.
R-09HR best digital recorder on market! July 19, 2008
paul monad (massachusetts)
3 out of 3 found this review helpful
I have been waiting for 2 years to finally purchase this great machine.
I have done a lot of research on all available competing recorders.The previous generation R-09 had some problems reported by other users,causing me to wait until new R-09HR came onto the scene.
Mike preamp noise ,and failure of mike and line input jacks,and cheap plastic construction and other minor issues with R-09 caused me to wait to purchase this fantastic new R-09HR.
I am so glad I waited,and did not buy other recorders on the market,that all had their own issues and problems.
The R-09HR is a beautifully engineered product....When you take it out of the box,and hold it and look at the beautiful design,it brings a smile to your face!
I have now used it in many recording situations that really test the capability of this unit...Net result being that the recording quality is FANTASTIC!...The improved mikes,preamps,larger oled screen,improved battery compartment.32GIG capacity,remote control that works real nice, now mean that this is best unit on the market! I have shown my musician friends what this device can do,and everyone is GREATLY IMPRESSED by all the great features,design,and tremendous value this superb machine has!
I predict Edirol will sell BOATLOADS of this killer device..If you want the best on the market, right now is the time to buy it!...Also purchase the well designed silicone case that slips on the unit ,giving great protection to this superb machine,easily a 5 star product!
AWESOME! July 29, 2008
Addison M. Schonland
1 out of 1 found this review helpful
I bought the product based on other reviews. But then I took it on a trip to decided to record a live show. The sound quality was utterly astounding. Reproduction was incredibly accurate and, frankly, sounded like it was a pro job.
|
|
|
