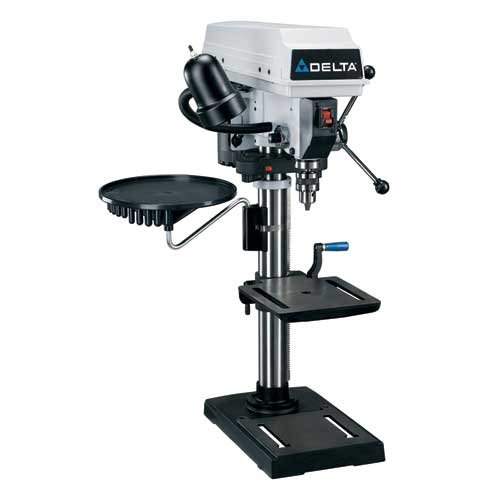

DELTA DP300L 12-Inch TwinLaser Crosshair Drill Press |
| Brand: Delta
List Price: $341.69
Buy New: $189.99
You Save: $151.70 (44%)
New (11) Used (1) from $100.00
Rating:  10 reviews
Sales Rank: 7205
Media: Tools & Hardware
Autographed: No
Memorabilia: No
Shipping Weight (lbs): 85.5
Dimensions (in): 31.4 x 18 x 12.2
MPN: DP300L
Model: DP300L
UPC: 028877552453
EAN: 0028877552453
ASIN: B000IZC28U
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | Fully adjustable Twin Laser pod projects bright red crosshair on workpiece at point of bit contact | | • | Induction motor for long-lasting, smooth performance; tilting table with slots for fast clamping of work; 1/2-inch capacity chuck | | • | Pivoting motor mount maintains correct belt tension and facilitates speed changes; 3-spoke pilot wheel for operator convenience | | • | Adjustable-position, locking depth stop for accurate depth measurement and repetitive drilling. | | • | 2-year warranty |
|
| Accessories:
|
| Similar Items:
|
| Editorial Reviews:
Product Description
Delta, Model DP300l, 12" Laser Crosshairs, Bench Drill Press With A 1/3HP, 120V Motor, Tilting Table, Table Raising Mechanism, 0 To 1/2" Capacity Chuck & Key, Belt & Pulleys, Light, Tray & Instruction Manual, Fully Adjustable Twin Laser Pod That Projects A Bright Red Crosshair On The Work At The Point Of Bit Contact, Induction Motor For Long-Lasting, Smooth Performance, Pivoting Motor Mount Maintains Correct Belt Tension & Facilitates Speed Changes, Adjustable-Position, Locking Depth Stop For Accurate Depth Measurement & Repetitive Drilling,Tilting Table With Slots For Fast Clamping Of Work.
Amazon.com Review
We were taken totally by surprise when we first saw Delta's new DP300L, because it's got the features of the big boys but the footprint and the price tag of your basic benchtop drill press. It starts out simply enough, with a six-inch distance between chuck center and column, letting you drill the center of a 12-inch board. The quill travel is a decent 2-3/8 inches, plenty for any drilling or sanding job. There's a wide range of spindle speeds to use for whatever material you're drilling, be it wood, metal or plastic, from 620 rpm all the way up to 3,100 rpm, all accessed by slipping the belt onto the appropriate set of pulleys under the top cover. The table is a reasonable 8-1/2 by 9-7/8 inches, and it tilts easy for angled drilling. But what we like most about the table is the accommodation for a C-clamp along the edge, something most drills in this class have overlooked. In addition to the table, there's an auxiliary table mounted to the column that holds an array of bits and other supplies, quite a nice feature on a drill this size. The table travels up and down the column via a very precise rack-and-pinion system like the floor-stand drills, and the locking mechanism is solid. Lighting's always been a bit of a problem on drill presses we've used, but this one's got an integrated gooseneck lamp that moves and tilts and shines light exactly where you want it. But that's not the only light on this drill press: It's got two lasers that project a bright red crosshair on the work surface showing exactly where the bit will contact the material. It's powered by a 9-volt battery (not included, so pick one up beforehand) and has a rocker-style power switch on what Delta calls the pod. Calibration is a relatively simple process, and the results are outstanding. Rather than running the bit down to the workpiece for an approximation of the contact point, you just turn on the beams and pinpoint where the bit will cut. We think the lasers will be particularly useful when drilling into cylinders like PVC pipe or dowels and pilot holes in intricate scroll-saw patterns. It's a nice, sturdy press that really doesn't need to be bolted down to your workbench but can be if you prefer. We're really pleased with the innovations on this press and glad to see Delta maintained quality while adding the bells and whistles. Bravo!--Kris Jensen-Van Heste
|
| Customer Reviews: Read 5 more reviews...
Good tool some small issues January 4, 2007
E. Weber (NH United States)
26 out of 26 found this review helpful
I am overall satisfied with the tool.
It is a little difficult to adjust precisely the depth stop.
Same with the laser. I actually found that I need to recalibrate the lasers each time I change the table height slighty if I want them to be dead accurate.
UPDATE: I now have used this drill press for almost a year and stick with my original review. The tool is still functionning properly. I had a chance to use the different speeds to bore bigger holes, it is a little annoying to have to move the belt but the operation is overall easy. The tool is working as it did the first time I powered it, there is no noticable play.
Overall a good buy.
 Delta 12" Press Review January 23, 2007
C. Evans
23 out of 23 found this review helpful
I just unpacked and setup the Delta 12" drill press. Problems: The plastic power switch was broken off during shipping (once the plastic is cracked there is no easy way to re-attach it). So now I have a brand new drill press with a broken power switch! Be warned if you are having this item shipped! It is not packed well enough to survive UPS Ground.
Otherwise the quality of this tool is equal to the price. It's better than a hobby drill press but not quite as good as a professional "shop quality" drill press.
The setup and assembly instructions were OK. But there were many opportunities for mistakes in assembly that could be more explicitly addressed. Specifically, I recommend assembling the drill press - but leave off the laser unit and the bracket for the tool tray. Leave the bolts a little loose. Then using the base plate as the reference point, use a carpenter's square to align the other components (so everything is aligned with the same centerline. Now tighten everything down and add the laser unit.
The laser cross-hair unit is surprisingly not a gimmick! It's actually designed pretty well. But you must follow the instructions to calibrate it (take a moment to contemplate what you are doing and why!) You must first adjust the lasers so they are "exactly parallel" to each other. The next step is adjusting the lasers so they cross exactly where the drill bit touches. Getting the lasers parallel is essential because this is what allows you to move the drilling platform up and down without loosing proper laser alignment.
I would not buy a drill press that is any lower in quality/cost than this Delta otherwise you'll end up with a piece of junk.
Easy setup and works as advertised March 8, 2007
Mark DIY
8 out of 8 found this review helpful
The drill arrived in a box that appeared to have been handled roughly during shipping. I was initially concerned. However, the foam packaging did its job and all drill componenents were in brand-new condition.
Assembly was easy and proceeded exactly as the manual specified. All metal parts have a healthy dose of protective oil. You can wipe the excess oil with a clean rag (but never actually wash or "clean" the oiled surfaces).
The laser alignment process works as advertised thanks to the included alignment pin that fits into the drill chuck. It is important (as another reviewer has mentioned) to align each laser parallel to the alignment pin. Once each laser is parallel, you can adjust where they intersect for perfect alignment below the drill bit regardless of the height of the adjustable table.
For the money, this is an excellent drill press. I haven't used it extensively yet, but initial tests have been perfect.
 A great machine!! April 6, 2007
Bill (Massachusetts)
4 out of 6 found this review helpful
I received the drill press in great condition. ELG was the shipper and they did a great job. Assembly of the drill press was easy, the directions were great. I purchased the mortise attachment at the same time and can't wait to use it. I recommend this machine to any one who is interested in getting the most out of their hard earned $$.
Very pleased with price/performance January 19, 2008
George Diakiw (Central FL)
3 out of 3 found this review helpful
Mine arrived looking like it had fallen off the back of the truck at high speed. I even took exhaustive pictures out of concern that it had been damaged. NOPE. Everything was in perfect shape even tho the packing was falling out in some places.
Don't expect "professional grade", but this press impressed me as solid workhorse and, if you read the instructions (GASP!) and follow them, all the "little issues" are clearly addressed, the most annoying is that the table binds a bit as you lower it. No problems with spindle eccentricity, vibration, or the chuck coming loose. And everything locks and stays where you put it, except for the lasers, and that's only during adjustment. That's a pain because the housing and mounts are plastic and the thing flexes during adjustment. Just when you think you've got everything perfect, you tighten up the retaining screw and it sometimes shifts a TAD. You'll get the hang of it, but it was a frustrating lesson for me and took about 2 hours to get 'em right. Then again, I'm a bit fussy about my tools ;) Oh, the gooseneck, well, is a bit limp at times.
I'm delighted with it for the price.
|
|
|
